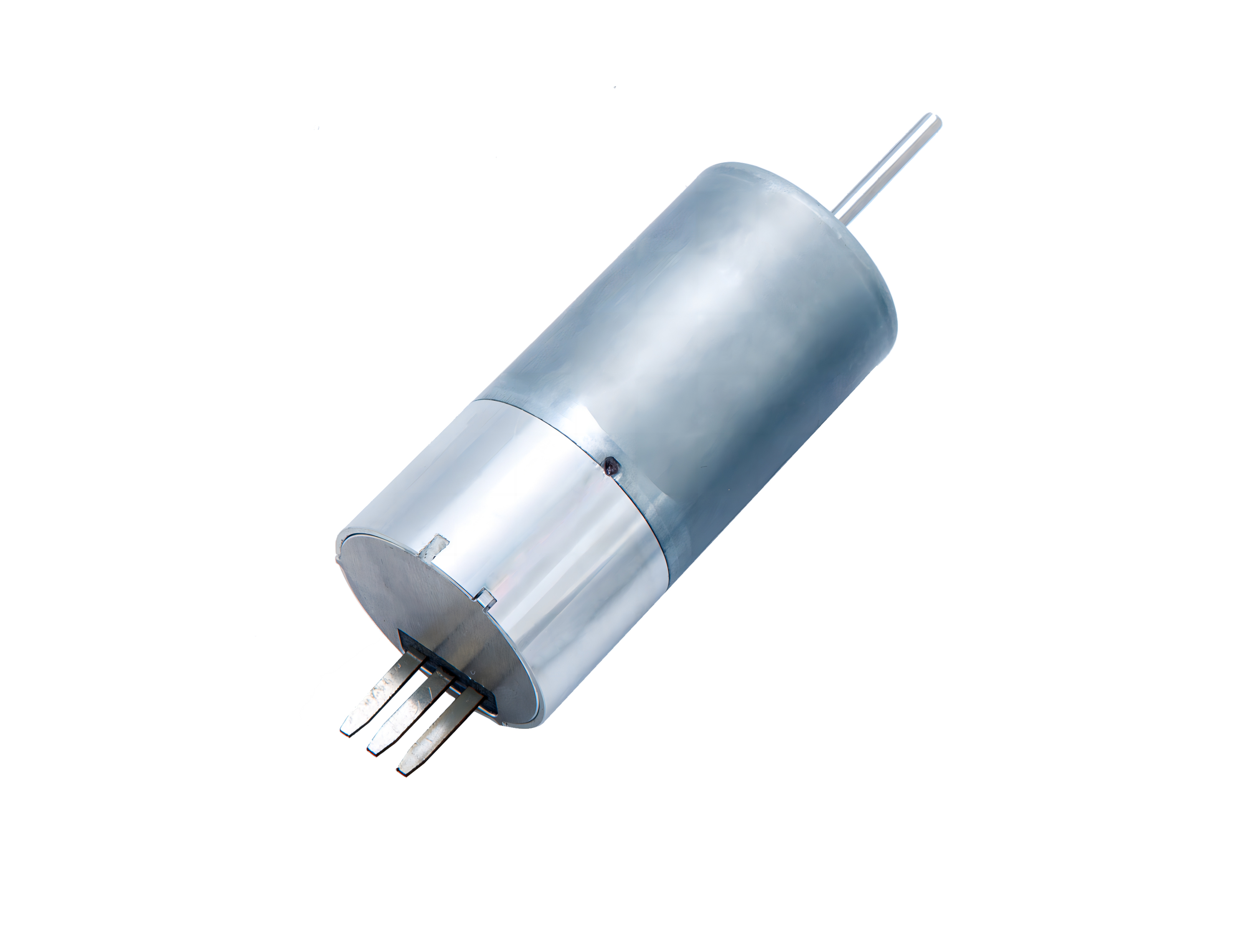

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL TORQUE | ||||||
| ERB-I143P | RANGE | NOMINSL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OURPUT | EFF | |
| V | V | r/min | A | r/min | A | g·cm | W | % | G.cm | |
| 6.0-36.0 | 13.5 | 5000-50000 | 0.5-3.0 | 3500-45000 | 1.0-20.0 | 400-2000 | 100-450 | 80 | 3000 | |
The controller of the drive motor and the output Hall IC signal need to use another 5V power supply. It is recommended that you use a dedicated controller DS-34EC1(W108mm x D9.6mm x H29mm).
This feature can be used at 120° power on. (It can also be used at 180° power supply.)
Specifications of reduction gear and drive components are also attached.
Motors can be used in automotive engineering, ADAS cleaning system
